TM-60 SEMI-AUTOMATED
TABLE BLAST CABINET - PHOTOS
|
.
Rear View with Doors
Closed
(View Windows Deleted)
|
.
.
Rear View with Doors
Open
|
| . |
|

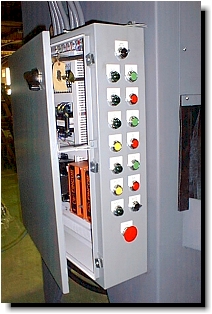

NEMA
12 Control Panel includes:
-
Fused disconnect switch
-
Control Transformer (incoming
voltage to be determined by customer
-
Air manifold start/stop push
button
-
Fan Start/stop push button
-
Table rotate start/stop push
button
-
Oscillator start/stop push button
-
Lights on-off switch
-
Air knife on/off switch
-
Indicator lights as required
-
Table speed potentiometer
-
Oscillator speed potentiometer
-
Emergency stop push button
-
Table jog momentary button
-
Starter with overloads for fan
motor
-
Starter with overloads for shaker
motor
-
(2) Timers for the dust filter
bag shaker control
-
Relays as required for latching
and control switching
-
All components of the blast
machine to be factory wired
-
NEMA 12 enclosure
|
Side View with Air Entry
Manifold
|
Hopper Section with Gun
Feed Chambers
.
I-Beam Support for Table
Drive Shaft
|
Table with Rubber Pad
& Air Knife
(Front Panel Removed)
|
Table (Rubber Pad Removed)
with Cast
Iron Table Segments and Shaft Weldment
|
 .
.
.
Top View (From Rear)
with Air Hoses Table-Driven Mechanism and Gun Oscillator Mechanism
|
