DC 2020 LABORATORY BLAST CABINET
xx
MODEL DC 2020 FEATURES:
  • The DC 2020 is completely wired and ready to plug into your 115 volt single phase outlet.  The unit is ready to connect to your compressed air supply
  • 20" x 20" x 20" work area
  • Removable parts tray
  • Mounted suction blast gun with 1/4" tungsten carbide nozzle.  A hand-held gun on a flexible hose is available as a no-cost option.
  • Vacuum type dust filter with fully enclosed bags
  • Hand bag shaker, front mounted clean out drawer
  • Exhaust fan with 1/3 hp motor
  • Convenience Package:  Includes factory installed blow-off gun on flexible hose, pressure regulator, pressure gauge and air line filter
  • Vision window protected by an easily replaceable steel sight-screen
  • Air spring assisted front opening door
  • White interior illuminated by fluorescent lamps for greater visibility
  • Fully wired design includes:
  • On/off switch
  • 24 volt internal control
  • Circuit with foot switch and front loading door interlock to help prevent accidental blasting when door is open

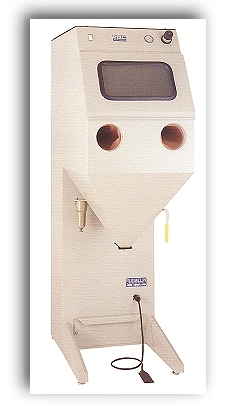

  • Model DC 2020 Shown

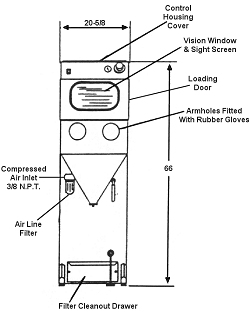

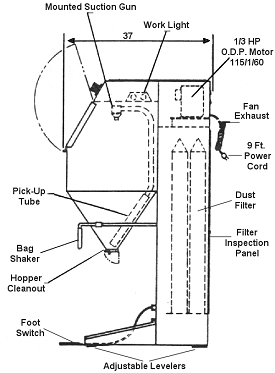

    SPECIFICATIONS
    Overall Height 66"
    Overall Width 20.5"
    Exterior Depth 37"
    Door Opening 11" x 18"
    Window Size 7" x 13"
    Interior Lighting 2 - 15 W. Fluorescent
    Exhaust Fan 3450 RPM 1/3 HP 115 V. 1 PH. 60 HZ.
    Filter Bags (5) Cotton Sateen
    Inside Dimensions 20" x 20" x 20"
    Weight 307 Lb.
    Air Jet 3/32" Diameter
    Nozzle 1/4 Dia. Tungsten Carbide
    OPTIONAL EQUIPMENT
    Convenience Package:  Blow-off Gun, Pressure Regulator, Pressure Gauge, Air Line Filter
    5/64 Dia. or 1/16 Dia. Air Jete
    3/16 Dia. Tungsten Carbide Nozzle

    xx
    Air Consumption Chart (CFM)
    Size of Air Jet
    Gauge Pressure (PSI)
    Approximate Horsepower Required
    60
    70
    80
    90
    100
    1/16
    4.2
    4.8
    5.4
    5.9
    6.5
    2
    5/64
    6.6
    7.5
    8.4
    9.3
    10.2
    3
    3/32
    9.5
    10.8
    12
    13.3
    14.6
    5
