COMPACT BLAST CABINETS
|
 xx
MODEL
2030
COMPACT BLAST CABINET with
20" x 30" x 24" work area, removable perforated steel table plates, vision
window protected by replaceable sight screen, side-swinging front loading
door, heavy rubber gloves with rubber gauntlets, and Type "C" suction blast
gun with tungsten carbide nozzle and flexible hose. Vacuum type dust
filter with fully enclosed bags, manual bag shaker, clean out door, and
exhaust fan with 1/3 HP motor (open dripproof, single phase, 60 hertz 115
volt).
Includes two PAR-38 electric
flood lights, foot control valve, and compressed air interlock on front
door to help prevent accidental blasting when door is open. Includes
Air Entry Package (air line filter and pressure gauge).
COLOR: Putty
SHIPPING WEIGHT: 400 lbs
OPTIONAL EQUIPMENT:
-
Type
 "B"
Heavy Duty Suction Blast Gun with ceramic nozzles and heavy duty rubber
suction blast hose (substituted for Type "C" blast gun)
-
Factory Installed Wiring Package
including manual starter for fan motor, on/off switch, flexible conduit,
and power cord with plug
-
Air Pressure Regulator
|
 |

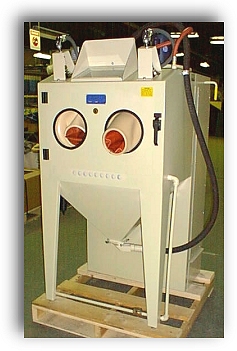

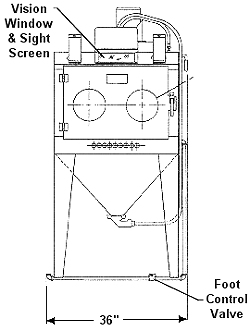

Model 2030 Shown
|
SPECIFICATIONS
|
| Overall Height |
65-1/2" |
| Overall Width |
36" |
| Exterior Depth |
34-3/4" |
| Door Opening |
16" x 23" |
| Window Size |
8" x 12" |
| Inside Dimensions |
20 x 30 x 24 |
| Weight |
400 Lb. |
| Air Jet |
3/16" Orifice |
| Nozzle |
Ceramic 3/8" Orifice |
|
OPTIONAL
EQUIPMENT
|
| Pressure Regular |
|
| Factory Wiring Package |
|
| Type "C" Blast Gun |
|
| Air Jet |
1/8", 3/16", 1/4" |
| Nozzles |
Ceramic 3/8" Orifice
Tungsten Carbide 3/8",
Boron 3/8" |
|
 |
 |
|
Air
Consumption Chart (CFM)
|
| Size
of Air Jet |
Air
Pressure
|
PSI
|
|
60
|
70
|
80
|
90
|
100
|
|
1/8
|
17
|
19
|
21
|
23
|
26
|
|
3/16
|
38
|
43
|
48
|
53
|
58
|
|
7/32
|
52
|
59
|
66
|
74
|
87
|
|
1/4
|
67
|
76
|
85
|
94
|
103
|
|
|
|
|
|
|
